What is a Solar Pile Driver? The Ultimate Guide to PV Station Foundations

Introduction

As the global demand for renewable energy accelerates, solar farms are being constructed in increasingly diverse and challenging environments—from vast deserts to rugged mountain slopes. While solar panels often get the spotlight, the stability of the entire system relies on what lies beneath: the pile foundation.

Enter the Solar Pile Driver (also known as a PV Piling Rig). This specialized piece of heavy machinery is the unsung hero of solar construction, ensuring that solar mounting systems are installed with speed, precision, and unwavering stability.

In this guide, we will break down exactly what a solar pile driver is, its critical components, and how different working modes adapt to various geological conditions.

1. What is a Solar Pile Driver?

At its core, a Solar Pile Driver is a hydraulic engineering machine specifically designed for the installation of photovoltaic (PV) mounting systems. Unlike generic excavators modified for piling, these machines are purpose-built to handle the repetitive, high-precision demands of solar farm construction.

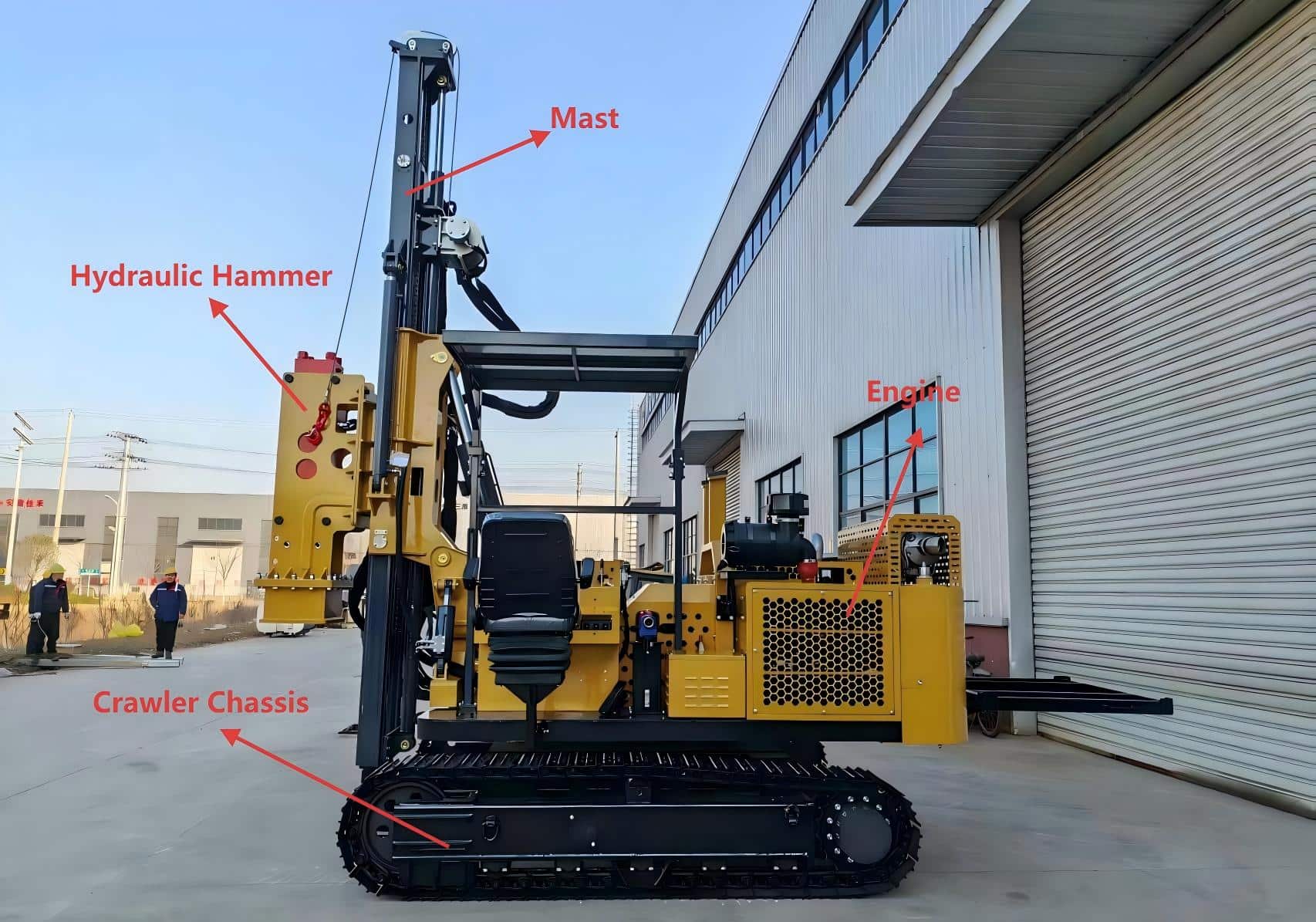

Key Components of a Professional Solar Pile Driver

To understand the machine, you must understand the engineering behind it. A high-quality pile driver (like those manufactured by TeZhong) consists of several critical systems:

· Diesel Engine: The heart of the machine. It provides the necessary power to the hydraulic system, ensuring consistent performance even in high-altitude or extreme-temperature environments.

· Hydraulic System: This system converts engine power into the force needed for lifting, rotating, and hammering. A stable hydraulic system is the key to machine longevity.

· Crawler Chassis: A track-based undercarriage that offers low ground pressure and high traction. This allows the machine to navigate muddy, sandy, or sloped terrains (up to 30 degrees) without getting stuck.

· Mast (Guide Rail): The vertical tower that guides the pile or drill. It ensures the pile enters the ground at the exact correct angle (usually 90 degrees vertical).

· Hydraulic Hammer: The primary tool for impact driving. It delivers high-frequency blows to drive metal posts directly into the soil.

· Rotary Head (Hydraulic Motor): A crucial component for drilling. It provides the torque (rotational force) necessary for screwing in ground screws or drilling through rock.

2. How Does It Work? (4 Major Working Modes)

A versatile solar pile driver is not a "one-trick pony." Depending on the soil report of the solar site, the machine can switch between different attachments and working modes.

Here is a breakdown of the four primary operation modes and when to use them:

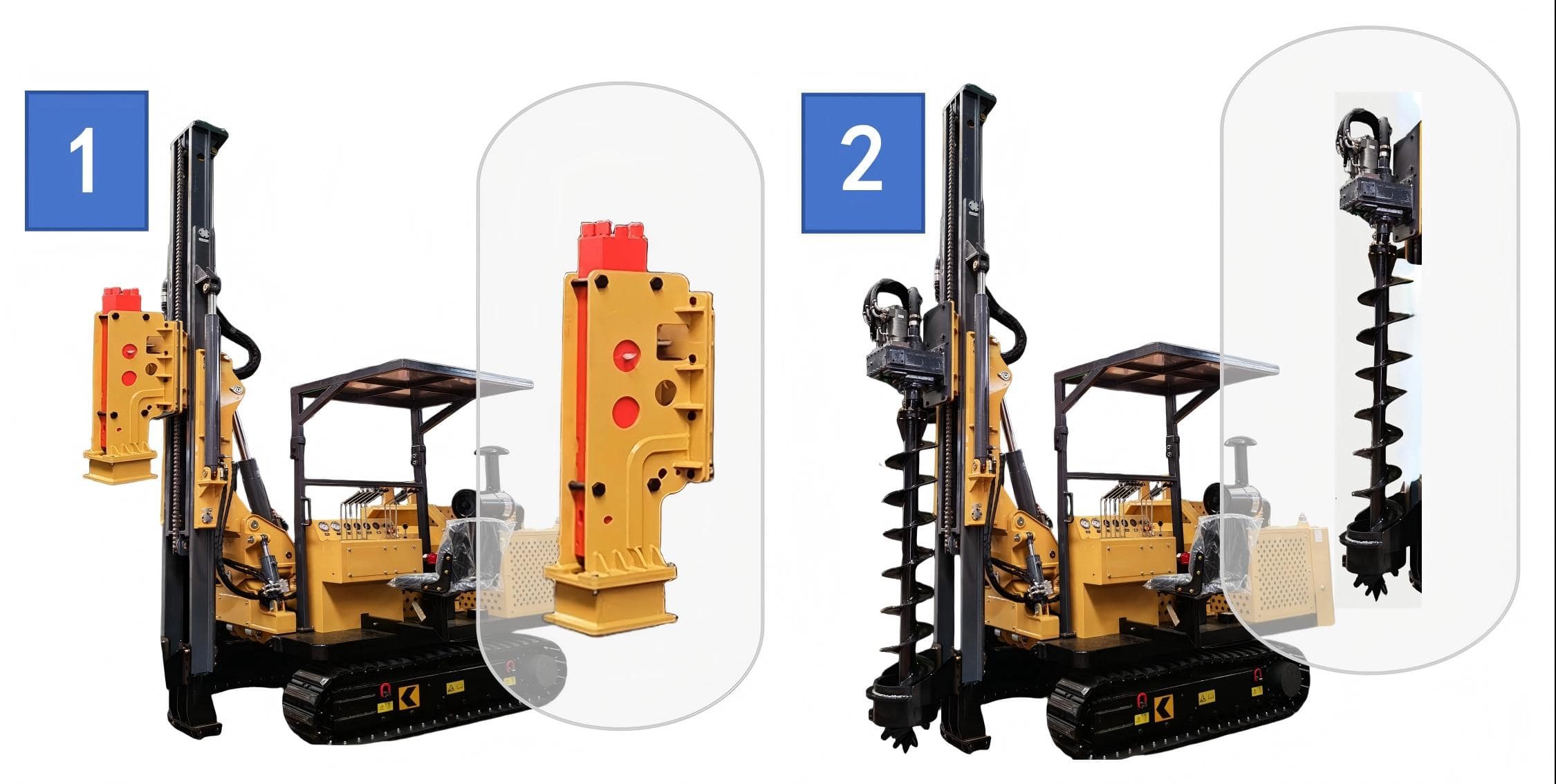

1. Hydraulic Ramming (Impact Piling)

· How it works: The machine uses the Hydraulic Hammer to pound C-posts, H-beams, or U-profiles directly into the ground.

· Best for: Clay, soft soil, and loam.

· Why use it: This is the fastest method. A skilled operator can install hundreds of piles per day, maximizing project speed.

2. Auger Drilling (Pre-drilling)

· How it works: The Rotary Head spins a spiral auger bit to drill a hole before the pile is inserted (often followed by concrete pouring or pile insertion).

· Best for: Compacted soil, frozen ground, or soil with gravel.

· Why use it: To loosen dense soil that is too hard for direct ramming but not hard enough to require DTH.

3. Ground Screw Installation (Screwing)

· How it works: The Rotary Head attaches to a specific adapter to grip the spiral ground screw. It then rotates the screw into the earth, similar to a power drill driving a screw into wood.

· Best for: Sandy soil or areas requiring high uplift resistance.

· Why use it: Ground screws offer excellent tension resistance and do not require concrete, making them an eco-friendly choice.

4. DTH Drilling (Down-The-Hole)

· How it works: Used in combination with an air compressor. The hammer action happens at the bottom of the hole (pneumatic impact) while the machine rotates the drill bit.

· Best for: Hard Rock, Basalt, and Limestone.

· Why use it: When the ground is too hard for a standard auger or hammer, DTH is the only efficient solution to penetrate rock layers.

3. Technology Spotlight: Intelligence & Automation

Modern pile driving isn't just about brute force; it's about intelligence. At TeZhong Pile Machine, we integrate advanced technology to solve common site problems:

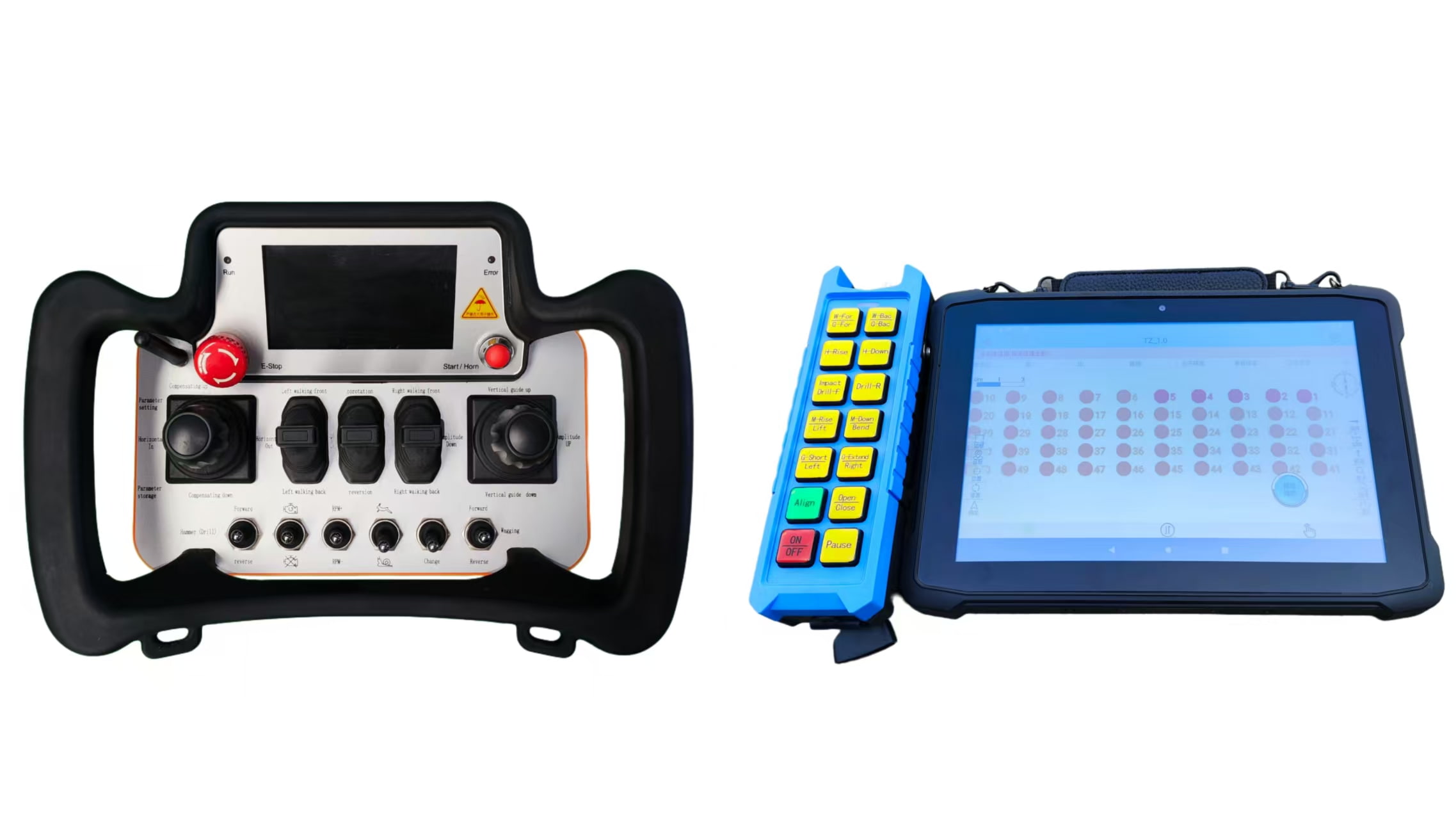

· Remote Control Capability: Operators can control the rig from a safe distance. This provides better visibility of the pile alignment and increases safety on hazardous slopes.

· GPS & Auto-Leveling: Precision is everything. Our systems can integrate GPS positioning to locate exact pile points, and auto-leveling sensors ensure the mast remains perfectly vertical, even if the chassis is sitting on uneven ground.

4. The Critical Role in Solar Farm Construction

Why should EPC contractors invest in a dedicated Solar Pile Driver rather than renting general construction equipment?

1. Speed & Efficiency (ROI): Time is money. A dedicated pile driver is significantly faster than a retrofitted excavator. Faster installation means the solar farm connects to the grid sooner.

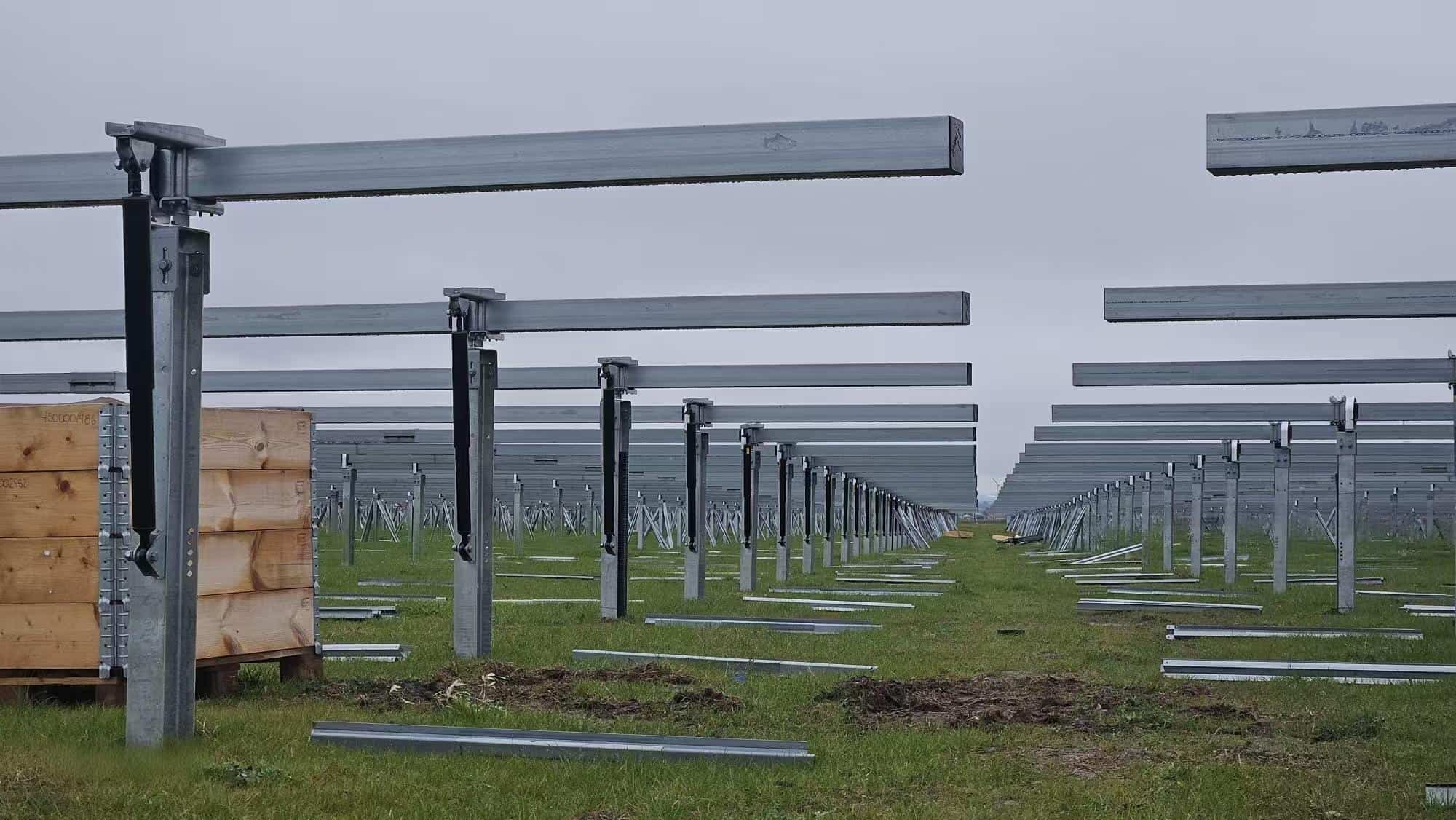

2. Precision & Quality: Solar racking systems have strict tolerances. If a pile is tilted by just a few degrees, the rails won't fit. Professional pile drivers ensure the verticality and position accuracy required for hassle-free racking installation.

3. Versatility: With one machine, you can tackle a site that has mixed geology (e.g., soft soil in one zone, rock in another) simply by changing the head from a Hammer to a Rotary head.

5. Conclusion

The Solar Pile Driver is the backbone of any ground-mounted photovoltaic project. Whether you are driving H-beams into soft clay or drilling through solid granite with DTH technology, selecting the right machine determines the speed and success of your project.

Looking for a reliable manufacturing partner?

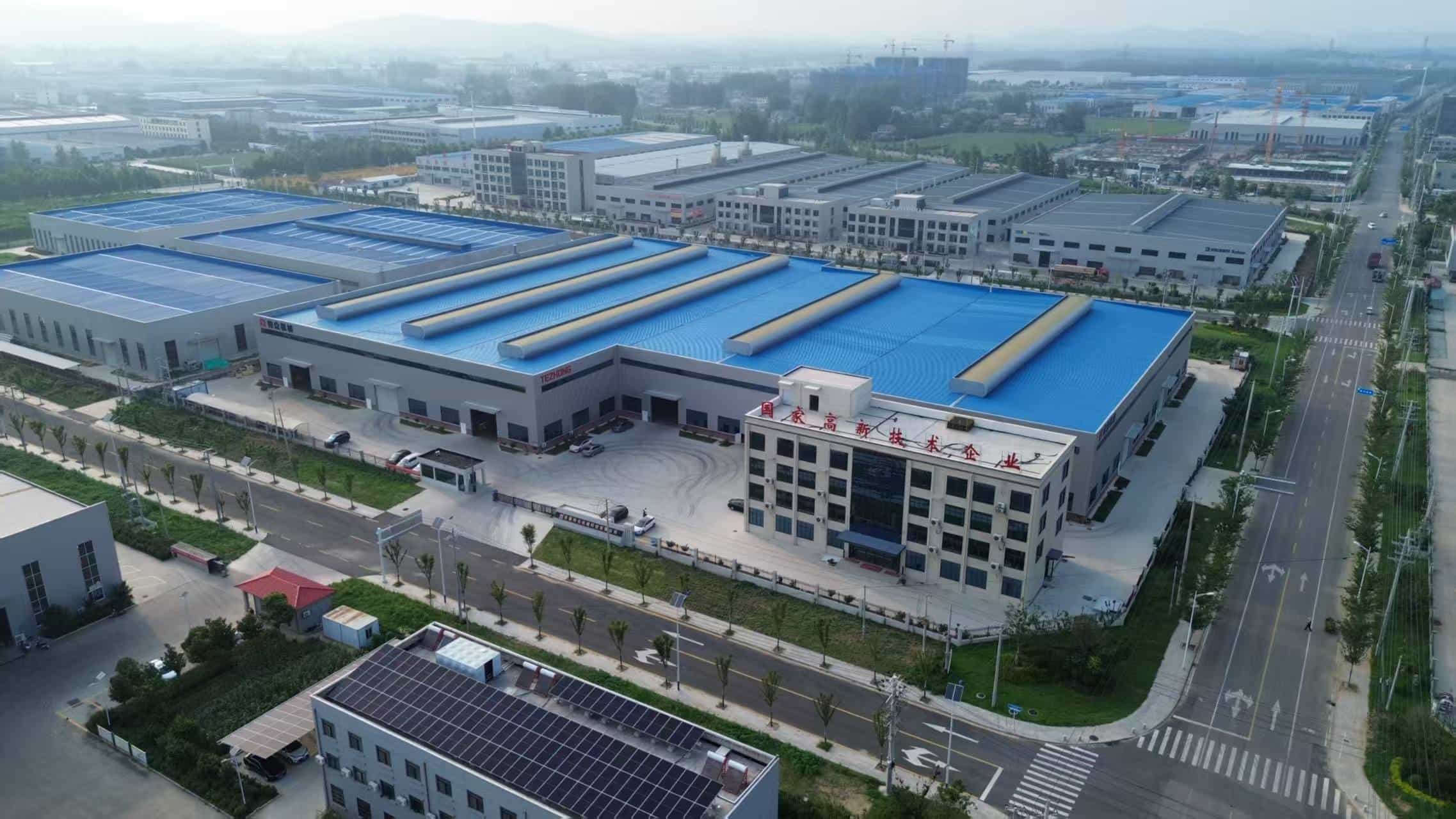

At TeZhong Machinery, we have been dedicated to R&D and manufacturing of piling machinery for decades. From rock drilling to high-speed ramming, our machines are built to last.
