Designed for photovoltaic power plant construction
Screw Pile Installation / DTH Drilling / Auger Drilling
Screw Piling Driving Installation : 4.0m
Drilling Depth : 4.0m
Drilling Diameter : 90~400mm
Engine : 92 KW
Product Number :
TZ535Order(MOQ) :
1Power Type :
DieselWeight :
5000 KgLead Time :
30 working daysProduct Origin :
ChinaShipping Port :
Shanghai , Qingdao Port etcWarranty :
1 YearVideo outgoing-inspection :

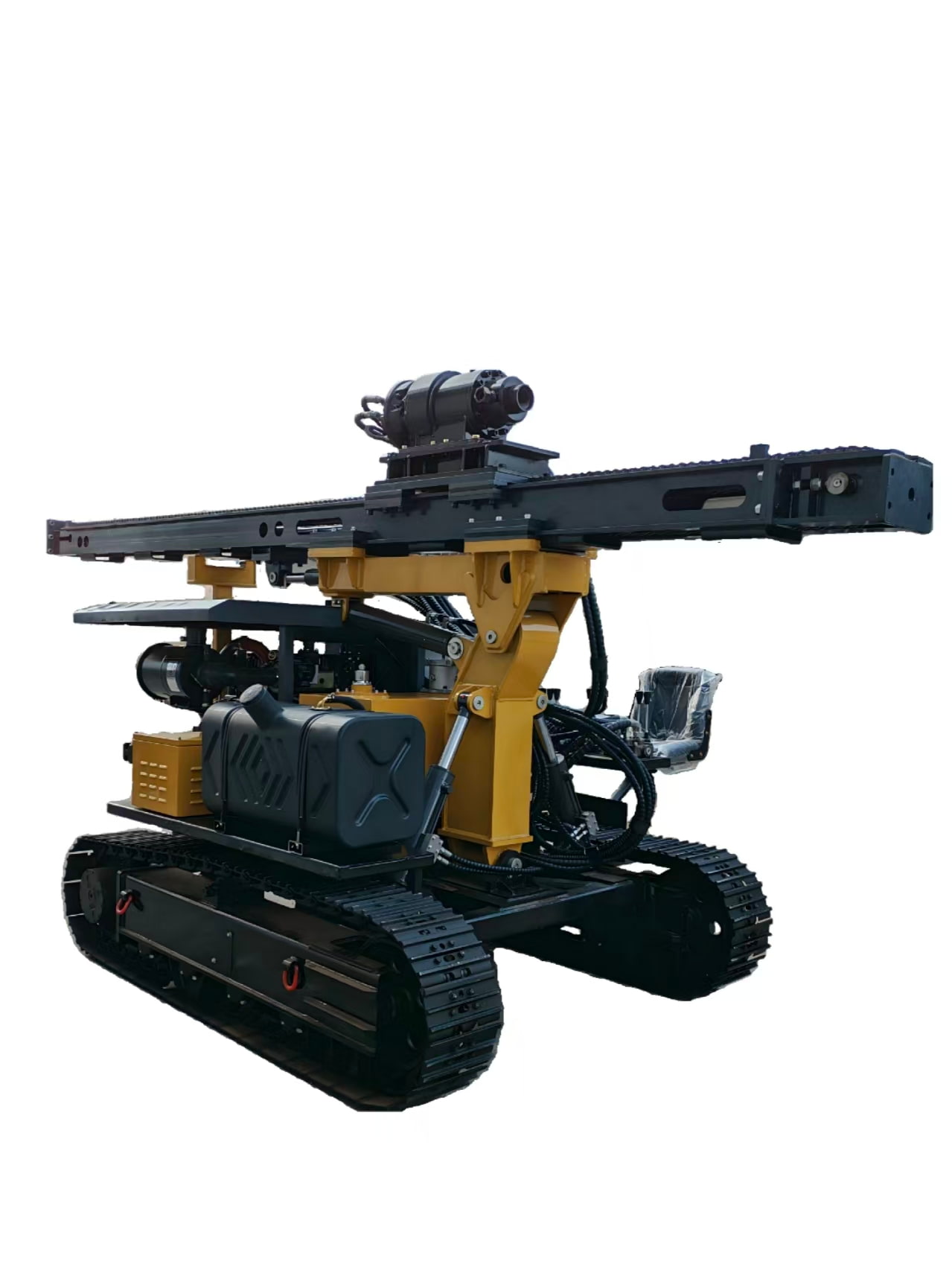

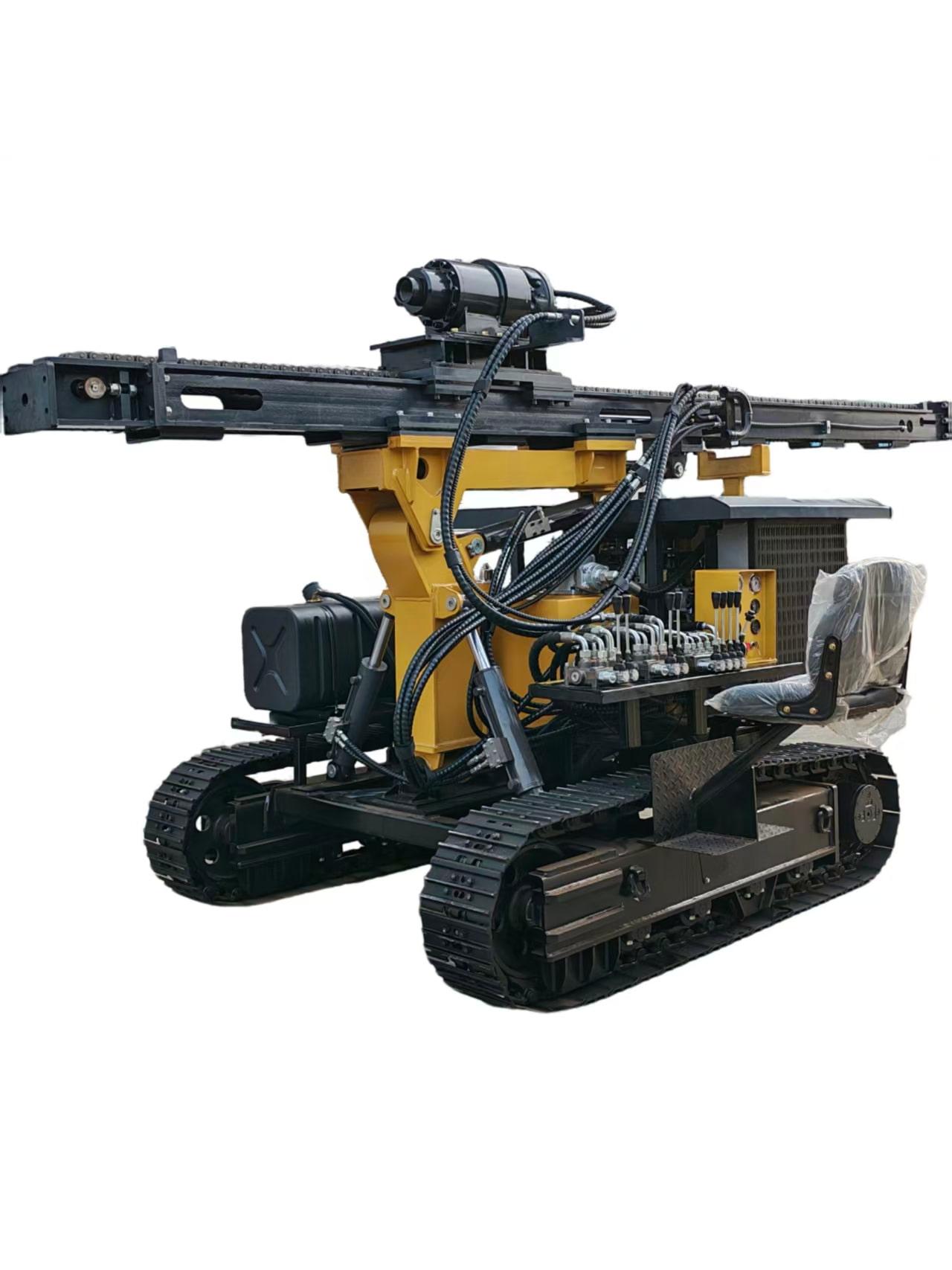

ProvidedTZ535-Drilling machine for Solar Project
Technical Specification
| Item | Unit | Value |
| Ground screw installation height | mm | 4000 |
| DTH drilling depth | mm | 4000 |
| Auger drilling depth | mm | 4000 |
| Drilling diameter | mm | 90-400 |
| Work dimensions (L ×W × H) | mm | 5700×1980×2500 |
| Operating weight | kg | 5000 |
| Main hydraulic pump type | / | Gear pump |

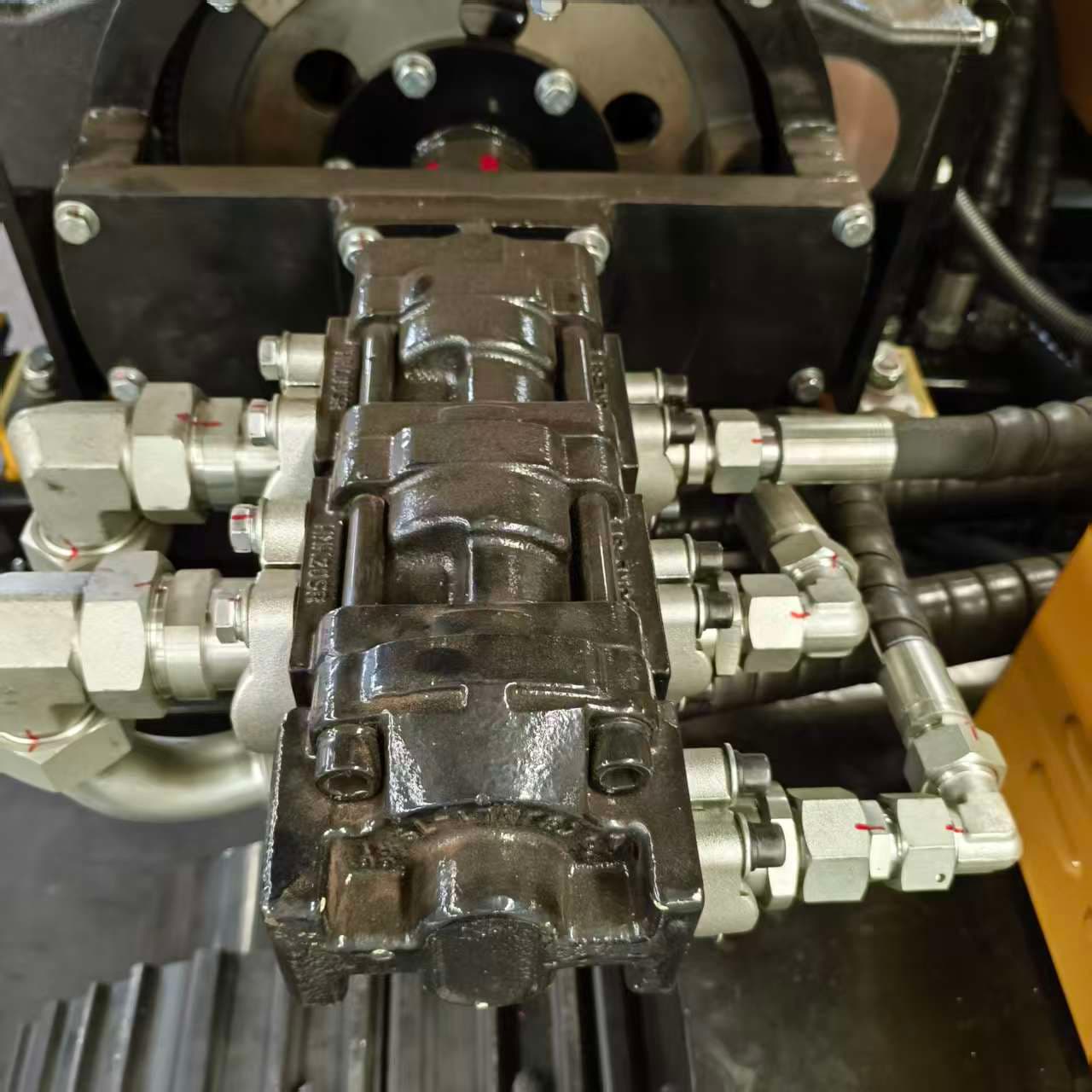

| Displacement of gear pump | cm³ | 40+40+20 |
| Output pressure of main hydraulic pump | MPa | 120 |
| Rated power | KW | 92 |
| Rated speed | r/min | 2100 |
| Travel speed | KM/h | 0-2.5 |
| Climbing ability |
° |
≤30 |

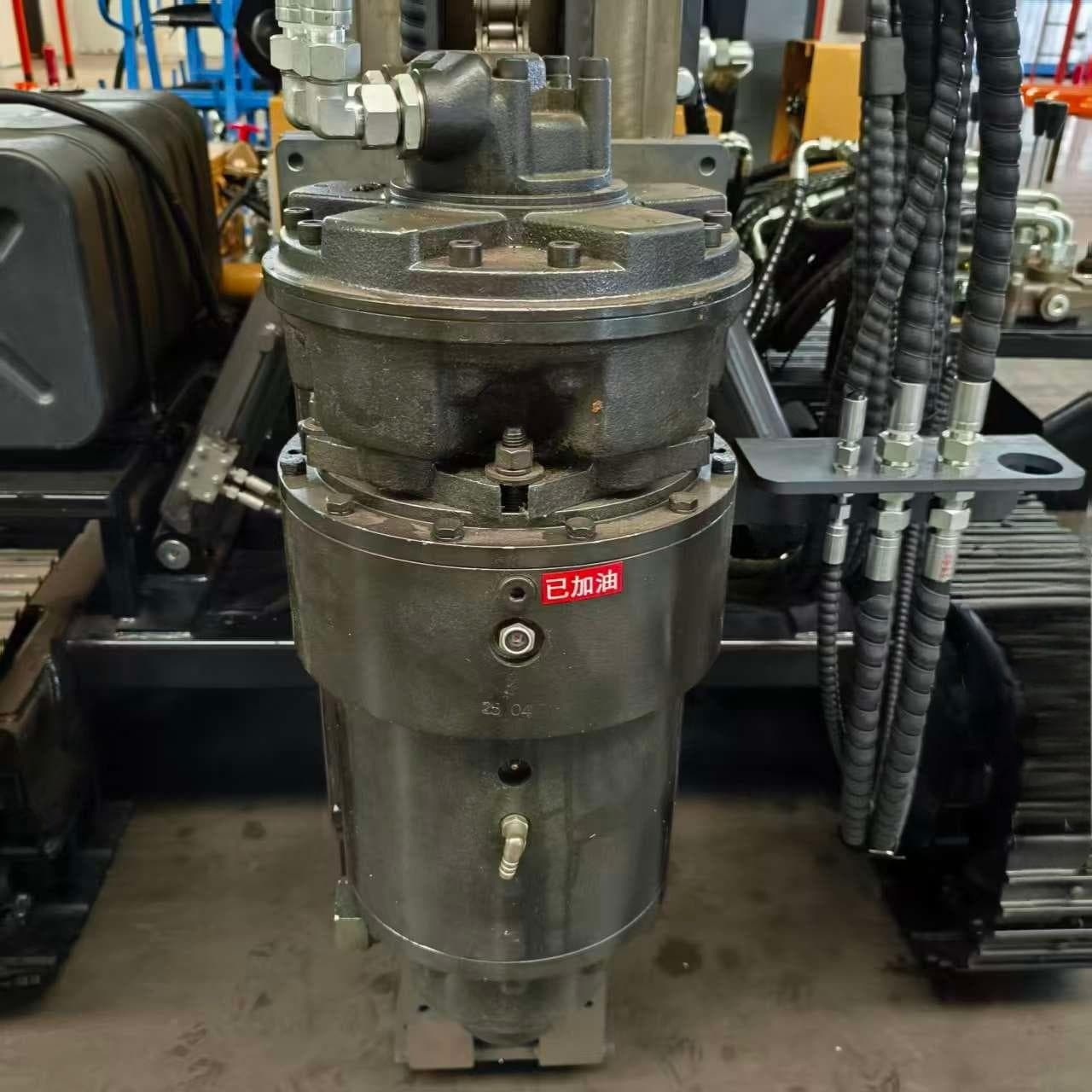

| Drilling angle (right and left) | ° | ±15 |
| Rotating head | Nm | 8000 |

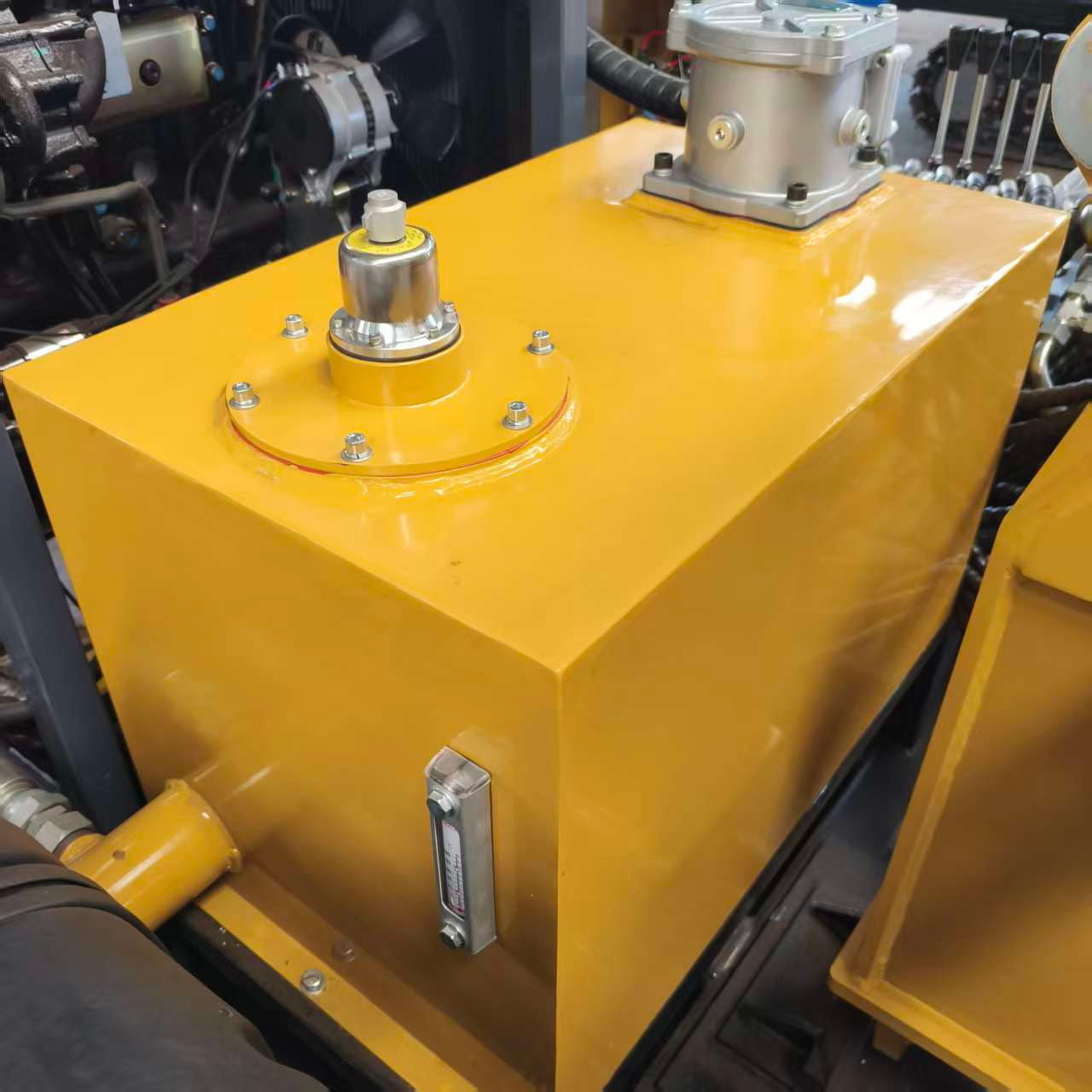

| Hydraulic oil tank capacity | L | 150 |
| Recommended hydraulic oil type | / | 46# |

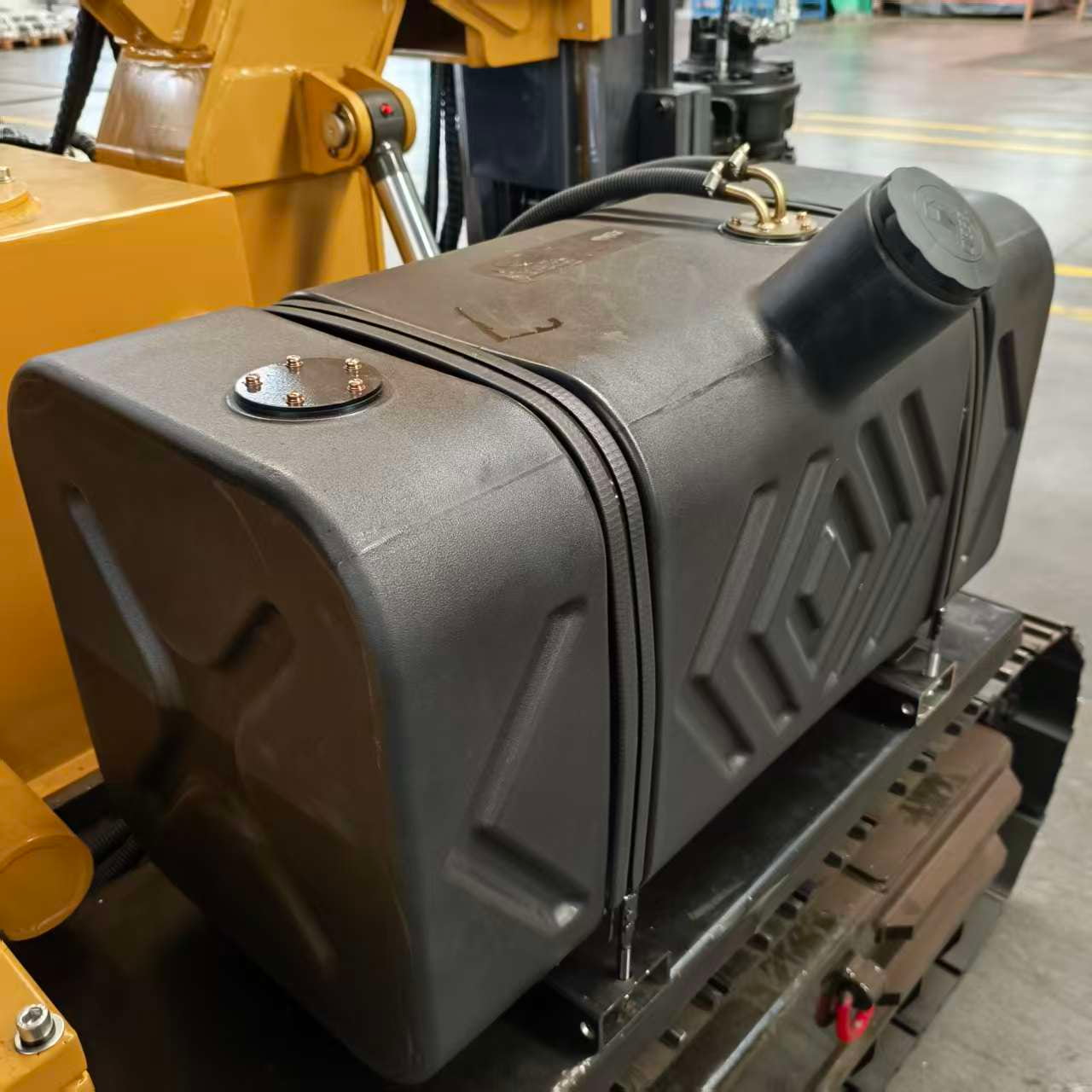

| Fuel tank capacitty | L | 120 |

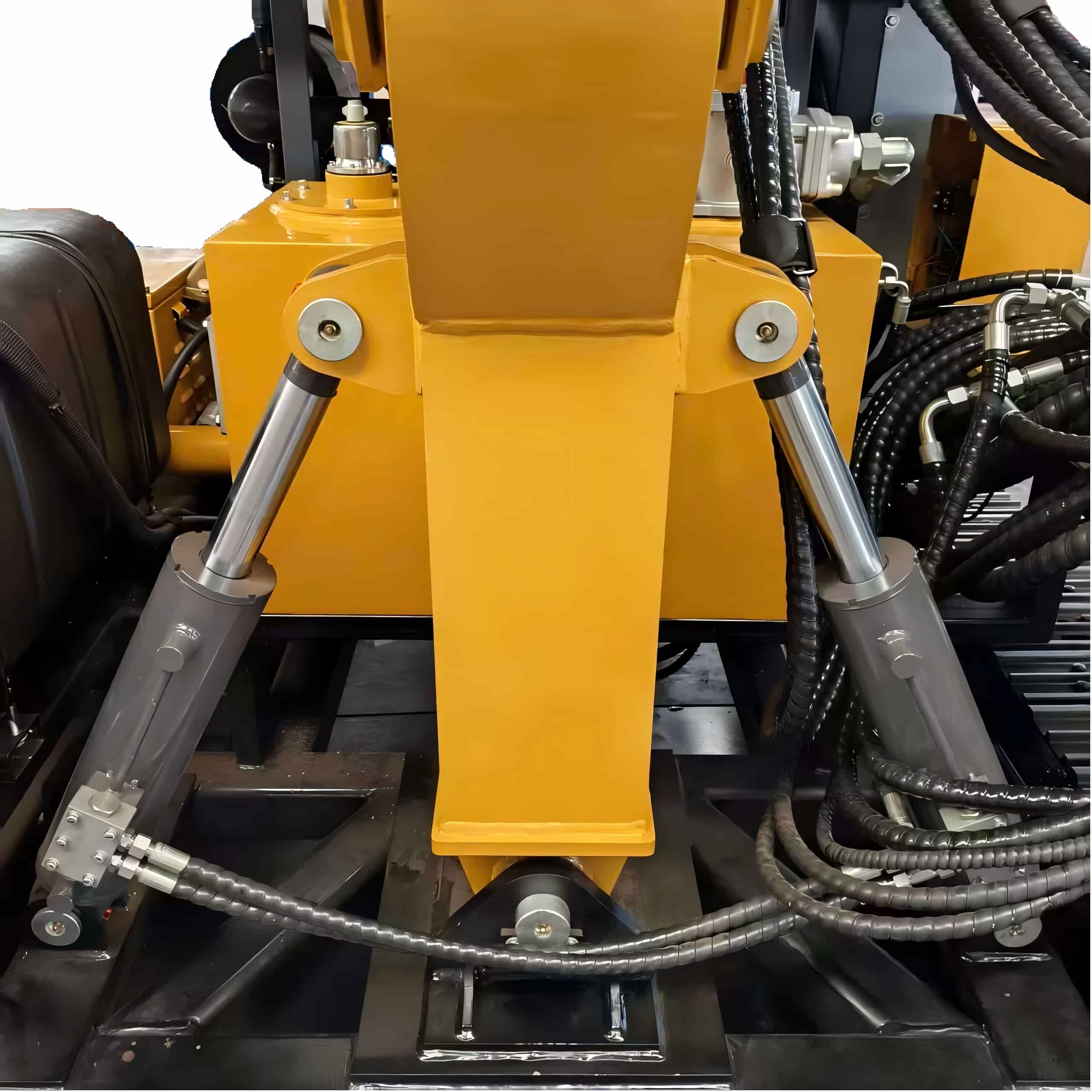

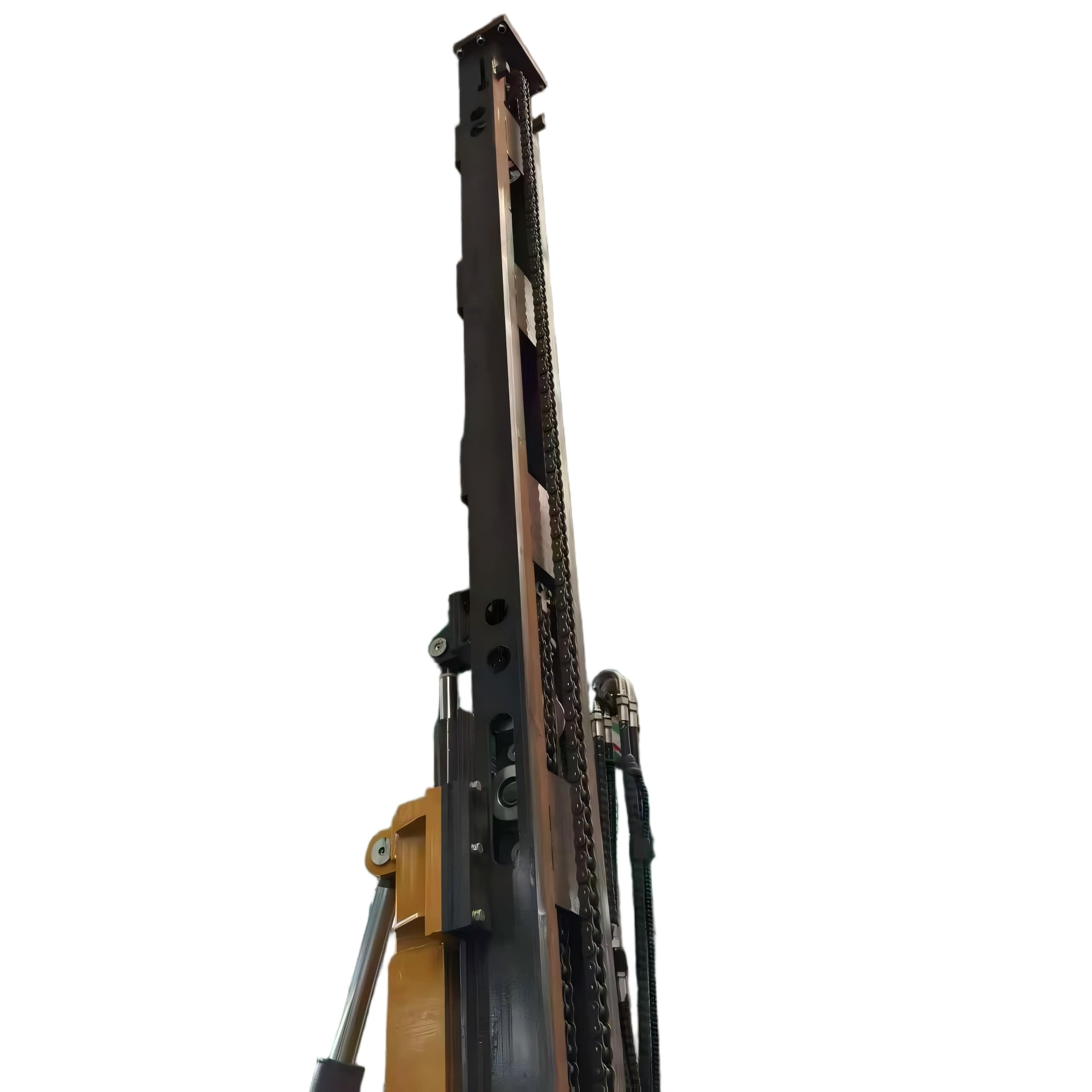

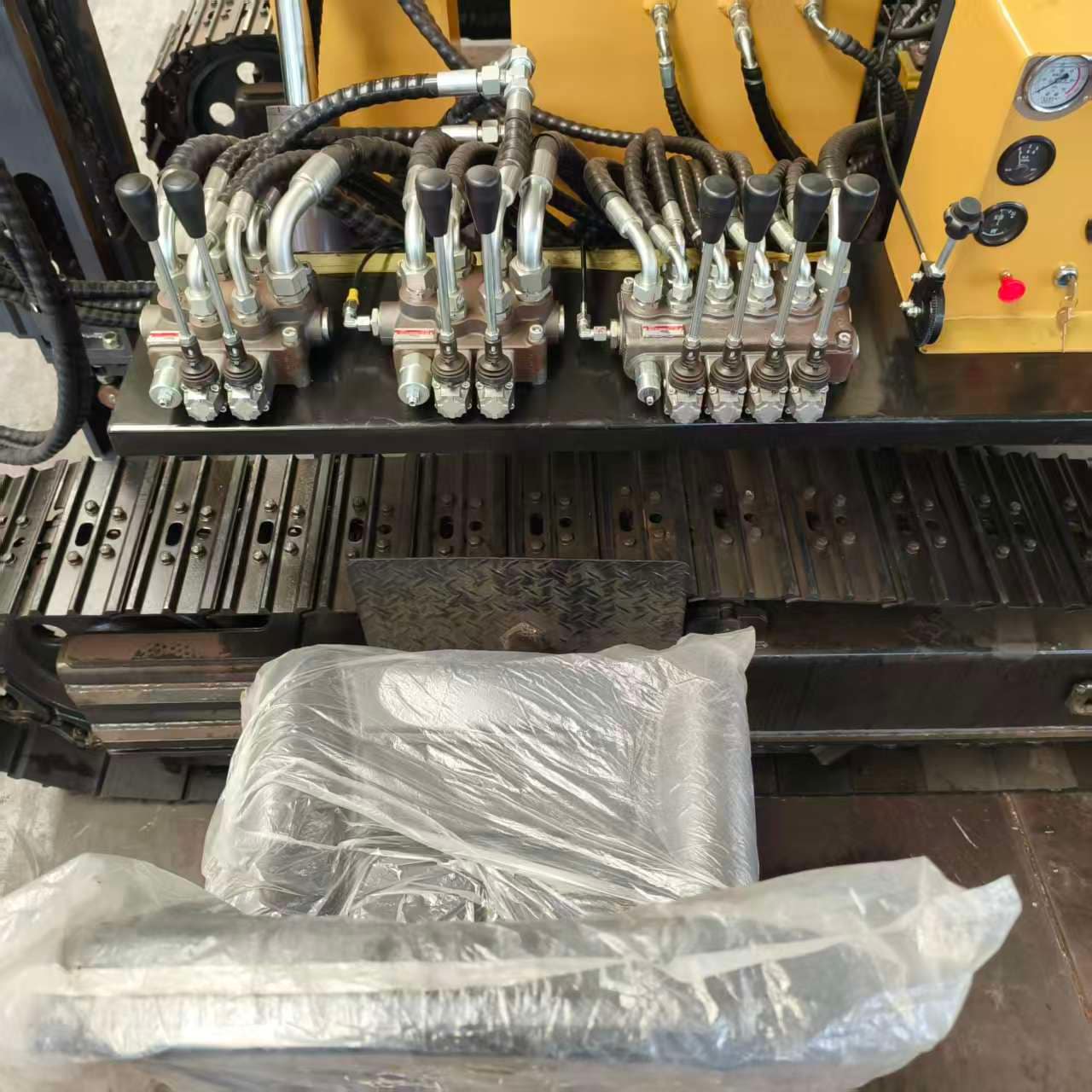

Some Features
Videos
CLIENT FEEDBACK
Choosing Tezhong will not only give you world-class equipment, but also help you complete your solar energy projects more efficiently and quickly. Welcome to join us!
Production Process
Frequently Asked Questions
1. What extras can be purchased?
Rotary Drills (small 1,500 NM & large 5,000 N.m)
A large selection of bits/complete sets.
Radio Control Systems（Remote control)
Hammer Impact Plate/Masks (customisable for a variety of pile profiles).
Rotary Head For Screw Piling (up-to 8000 N.m).
Augers for use with 2500 N.m rotary head (∅200 mm & 200 mm with tip, ∅250 mm & ∅250 mm with tip ).
A series of consumables, such as air filters and so on.
2. What can the TZ535 be used for?
Solar ground mounting using straight piles.
Screw piling.
Drilling - sustained or occasional
Carports.
Guardrails/Road safety barriers & highway fencing.
Agricultural Fencing.
Equestrian & Wildlife Projects.
And much more.
3.What does the warranty cover and how long?
One year manufacturer's warranty from time of arrival.
The whole machine is under warranty for one year except for wearing parts.
Electrical accessories are under warranty for 3 months.
It does not cover damage caused by not following manufacturers instructions on use, maintenance and servicing.
4.What pile dimensions can the TZ535 handle?
The TZ535 can handle piles with a length of less than 4 m. It can handle any pipe type.Only the specific dimensions of the pile need to be provided.
Some examples of square/rectangular post dimensions.
230 mm × 170 mm
202 mm × 202 mm
250 mm × 110 mm
5.Can the TZ535 be used for drilling or screw pile driving?
Drilling and Screw piling:Yes
By replacing the hammer with the rotary drill system, it can be used for drilling and screw pile installation.For different needs,hydraulic motors with different torques can be matched.
6.Are the TZ535 customisable?
Yes.
It includes:engines of different brands,power levels,or emission standards;hydraulic hammers；rotary heads;drill bits that can complete operations on different pile types;remote control system,etc.
We will customize according too customer requirements.

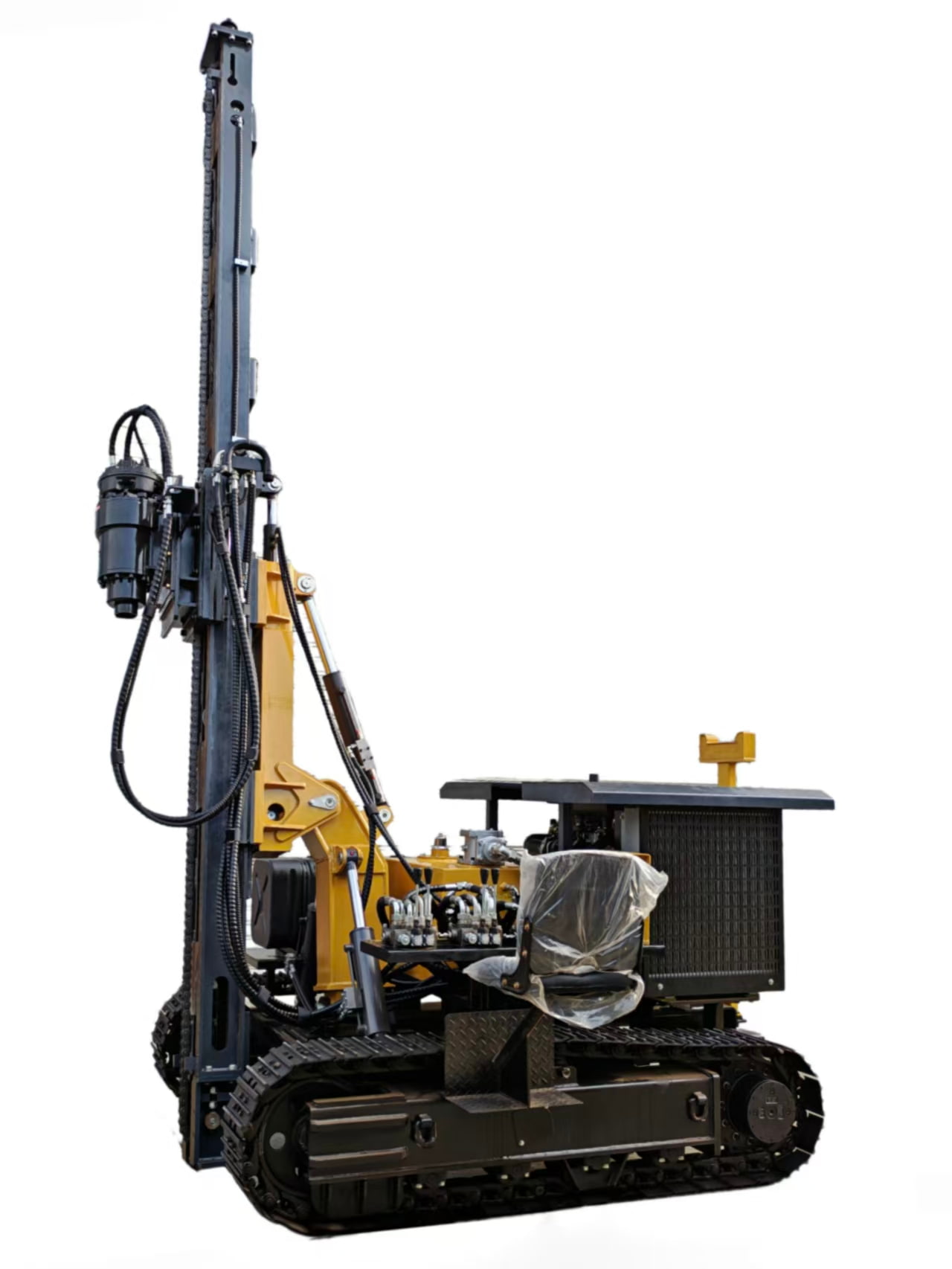

Designed for photovoltaic power plant construction Pile driving, pulling / Screw pile driving / Auger drilling / DTH drilling Pile Driving Heigh t: 6.0m Screw Piling Driving Height : 6.0m Drilling Depth : 5.5m Drilling Diameter : 50~400mm Engine : 91 KW , 124Horsepower
Details

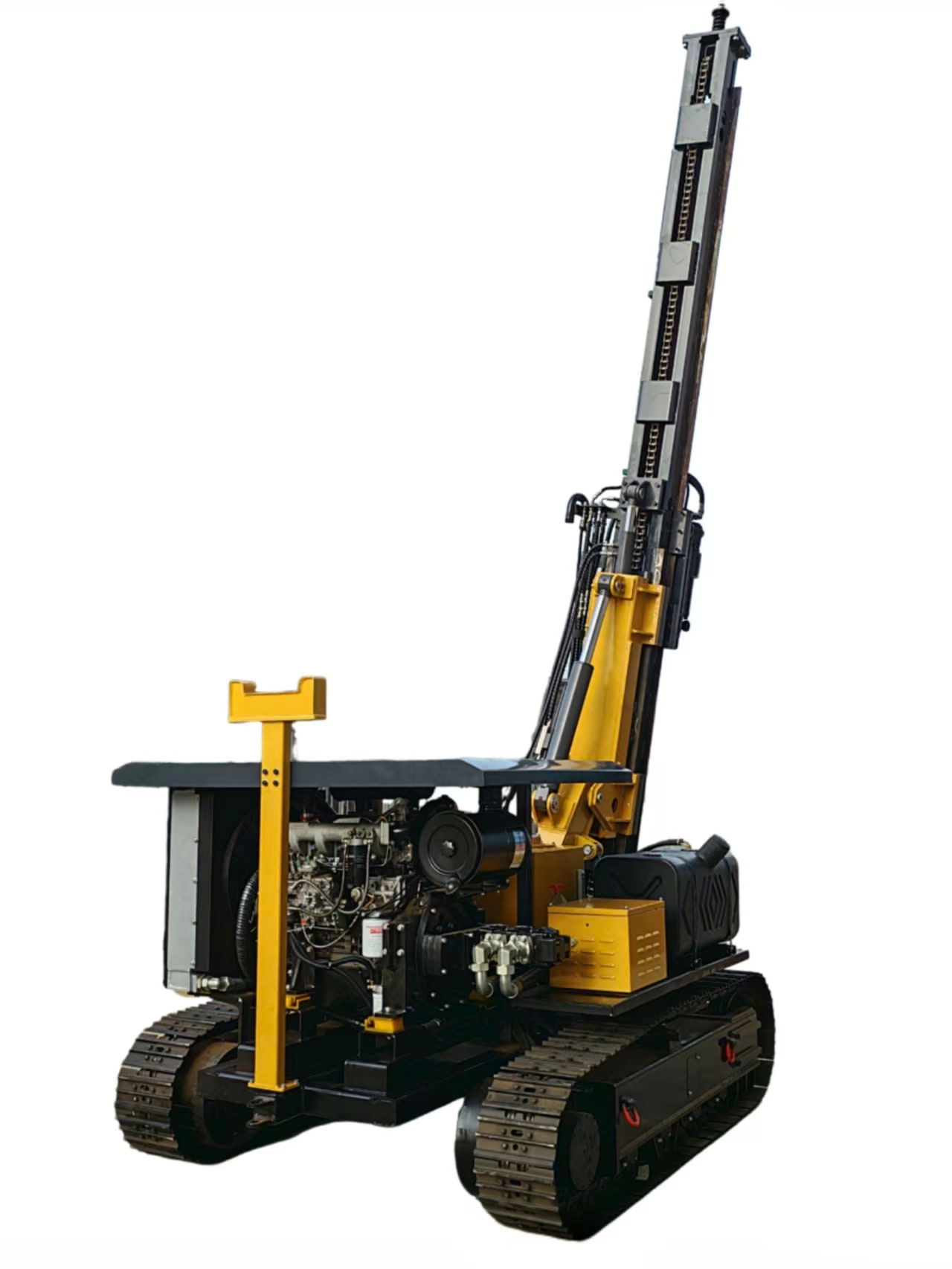

Designed for photovoltaic power plant construction Pile driving, pulling / Screw pile driving / Auger drilling / DTH drilling Pile Driving Heigh t: 4.0m Screw Piling Driving Height : 4.0m Drilling Depth : 3.5m Drilling Diameter : 50~400mm Engine : 91 KW , 124Horsepower
Details
Designed for photovoltaic power plant construction； Mast with mast drive.Rotation range: approx. 100°. Pile driving, pulling / Ground Screw driving / Auger drilling / DTH drilling Pile Driving Heigh t: 4.5m Screw Piling Driving Height : 4.5m Drilling Depth : 4.0m Drilling Diameter : 50~300mm Engine : 75 KW , 102Horsepower
Details
Designed for photovoltaic power plant construction Pile Driving, Pulling / Screw Pile Installation/ Auger Drilling / DTH Drilling Pile Driving Height: 5.5m Screw Piling Driving Height: 5.5m Drilling Depth: 5.0m Drilling Diameter: 50~400mm Rated Power: 91 KW
Details
Designed for photovoltaic power plant construction Screw Pile Installation / DTH Drilling / Auger Drilling Screw Piling Driving Installation : 4.0m Drilling Depth : 4.0m Drilling Diameter : 90~400mm Engine : 92 KW
Details
Designed for photovoltaic power plant construction Pile driving, pulling / Screw pile driving / Auger drilling / DTH drilling Pile Driving Height: 5.5m Screw Piling Driving Height: 5.5m Drilling Depth: 5.0m Drilling Diameter: 50~400mm Rated Power: 75/91 KW
Details
Designed for photovoltaic power plant construction Pile driving, pulling / Screw pile driving / Auger drilling / DTH drilling Pile Driving Heigh t: 4.0m Screw Piling Driving Height : 4.0m Drilling Depth : 3.5m Drilling Diameter : 50~300mm Engine : 52 KW , 70Horsepower
Details
Designed for photovoltaic power plant construction Pile driving, pulling / Screw pile driving / Auger drilling / DTH drilling Pile Driving Height: 8.0m Screw Piling Driving Height: 8.0m Drilling Depth: 7.5m Drilling Diameter: 50~400mm Rated Power: 91 KW
Details
For Solar PV Ground Mounting | Piling | Pulling | Drilling | Screw pile driving | Auger drilling Pile Driving Height: 4.0m Screw Piling Driving Height: 4.0m Drilling Depth: 3.5m Drilling Diameter: 50~400mm Rated Power: 75/91 KW
Details
This intelligent Solar pile driver is equipped with an automatic control system, a GPS system, and an automatic leveling system. For Piling | Pulling | Screw pile driving | Auger drilling Pile Driving Height: 4.0m Screw Piling Driving Height: 4.0m Drilling Depth: 3.5m Drilling Diameter: 50~300mm Engine: Commins 4BT3.9-C100 75KW
Details
Hydraulic screw drill is used for geological exploration and drilling, while screw pile driver is used for driving underground pile foundation. For Pile driving, pulling / Screw pile driving / Auger drilling Impact drilling Pile Driving Height: 4.0m Screw Piling Driving Height: 4.0m Drilling Depth: 4.0m Drilling Diameter: 50~350mm Rated Power: 52KW
Details
Designed for photovoltaic power plant construction Pile driving, pulling / Screw pile driving / Auger drilling Impact drilling Pile Driving Height: 6.0m Screw Piling Driving Height: 6.0m Drilling Depth: 5.5m Drilling Diameter: 50~300mm Rated Power: 75 KW
Details
Designed for photovoltaic power plant construction Pile driving, Pulling / Screw pile driving / Auger drilling / DTH drilling Pile Driving Height: 4.0m Screw Piling Driving Height: 4.0m Drilling Depth: 3.5m Drilling Diameter: 50~300mm Rated Power: 52 KW
Details
For Solar PV Ground Mounting | Piling | Pulling | Drilling | Screw pile driving | Auger drilling Pile Driving Height: 4.0m Screw Piling Driving Height: 4.0m Drilling Depth: 4.0m Drilling Diameter: 50~400mm Rated Power: 75/91 KW
Details
Designed for photovoltaic power plant construction Pile driving, pulling / Screw pile driving / Auger drilling Impact drilling Pile Driving Height: 6.0m Screw Piling Driving Height: 6.0m Drilling Depth: 5.5m Drilling Diameter: 50~300mm Rated Power: 75/91 KW
Details
Designed for photovoltaic power plant construction Pile driving, pulling / Screw pile driving / Auger drilling Impact drilling Pile Driving Height: 6.0m Screw Piling Driving Height: 6.0m Drilling Depth: 5.5m Drilling Diameter: 50~300mm Rated Power: 75/91 KW
Details
For Solar PV Ground Mounting | Piling | Pulling | Drilling | Screw pile driving | Auger drilling Pile Driving Height: 4.0m Screw Piling Driving Height: 4.0m Drilling Depth: 4.0m Drilling Diameter: 50~400mm Rated Power: 75/91 KW
Details
The PV Solar Screw Pile Driver utilizes hydraulic power and rotates at high speed to drive screw piles into the ground securing the PV support structures. Pile Driving Height: 4.0m Screw Piling Driving Height: 4.0m Drilling Depth: 4.0m Drilling Diameter: 50~400mm Rated Power: 75/91 KW
Details
